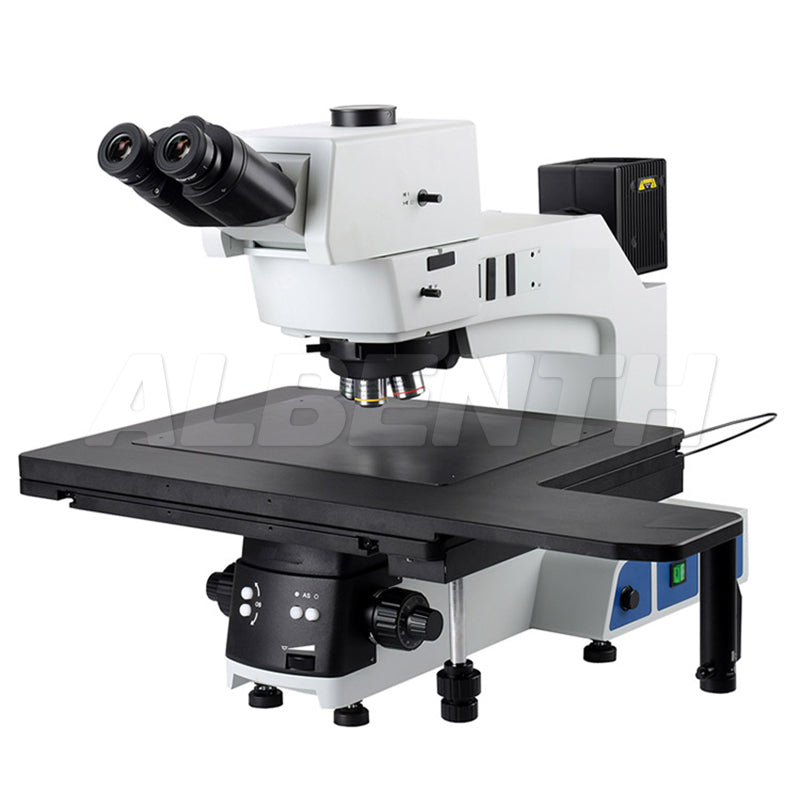

Semiconductor FPD Inspection & Flat Panel Display Inspection Microscopes

Availability: Out Of Stock
Plug: UL Plug
Hurry, only 0 item(s) left in stock!
Quote Request

● Head: 0-35° Tilting trinocular, Erect image, interpupillary distance: 50-76mm, splitting ratio: 100:0 or 0:100
● Eyepieces: PL10X/25mm, Diopter adjustable
● Objective: B&D semi-aprochromatic metallurgical objective
                    5X/0.15, WD=13.5mm, 10X/0.3, WD=9.00mm
                    LWD B&D semi-aprochromatic metallurgical objective
                    20X/0.4, WD=8.50mm, 50X/0.55, WD=7.5mm
● Condensor: B&D reflect illumination, with Iris field diaphragm and aperture diaphragm, central adjustable, with filter slot and polarizing slot, with switch device sIth bright and dark field
● Nosepiece: Electronic BD sextuple nosepiece with DIC slot
● Focus: Coaxial Coarse and fine focusing adjustment, Coarse adjustment distance: 35mm, precision of fine adjustment: 0.001mm, with loosen and tight limit ring
● Stage: 14X12 inches three-layer mechanical stage with low position coaxial adjustment, size: 718mm X 420mm, moving range: 356mm X 305mm; with clutch handle for quick movement; glass plate for reflected use
● Illumination: 12V 100W Halogen lamp(for reflection/
Transmitted), 12V 100W Halogen lamp (PHILIPS 7724)
● IF Filter: Natural IF Filter (for reflection)
● Polarizing kits: Polarizer (for reflection), Fixed analyzer (for reflection)

Read More


● Free Shipping by FedEx / UPS / TNT/ DHL (3-7days)


● Free shipping by China Express (Delivery time 14-28days)
● Shipping by FedEx (Delivery time 6-10days) ------$12.99
● Shipping by FedEx (Delivery time 3-8days)------$26.99

But some of countries shipping cost is expensive, Calculate shipping costs at cart or checkout. Our representatives are also happy to assist you with a shipping quote.


If you are dissatisfied with your purchase, let us help you with a replacement, return, or repair. Items can be returned within 30 days of receipt of your order without any restocking fee. Items must be in new condition with the original packaging.

Please contact us to receive an RMA number and steps on how to proceed with your return.

Exclusions may apply. For more information, read our Returns and Exchanges policy
