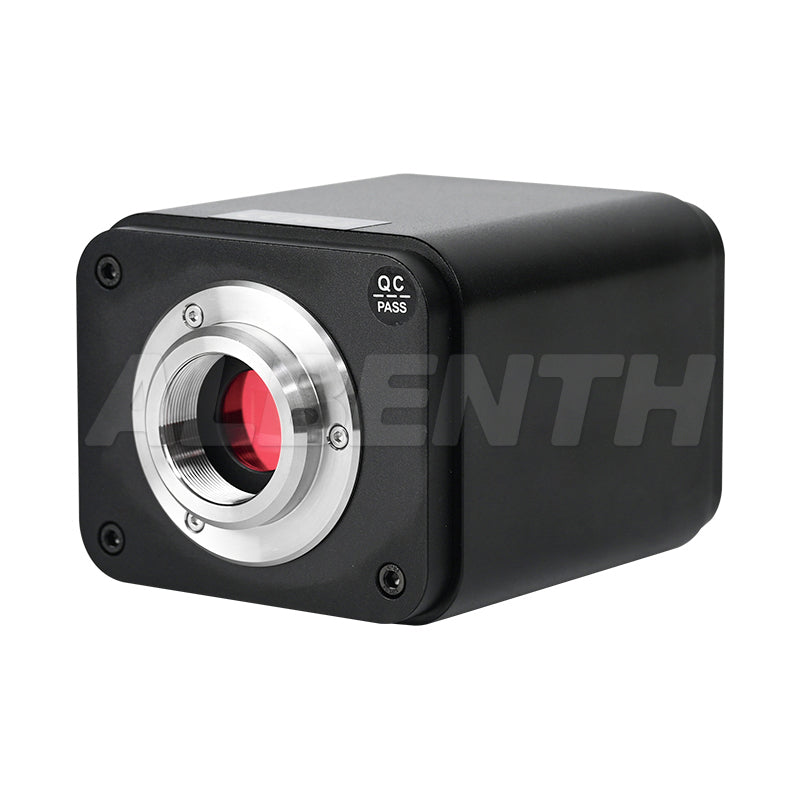

8MP 4K 60FPS Digital Microscope Camera With HDMI, WIFI, LAN, USB Output, Windows, OSx, Linux Systems

Specification
● Sensor & Size(mm): IMX585(C) 1/1.2"(11.14x6.26)
● Pixel(μm): 2.9x2.9
● G Sensitivity Dark Signal:
- 5970mv with 1/30s
- 0.13mv with 1/30s
● FPS/Resolution: 75@3840x2160
● Binning: 1x1
● Exposure(ms): 0.048~1000
● Video Saving(FPS/Resolution):
- 75@3840x2160
- 75@1920x1080
● HDMI2.0(FPS/Resolution):
- 60@3840x2160
- 60@1920x1080
● USB3.0(FPS/Resolution):
- 30@3840x2160
- 45@2688x1512
- 60@1920x1080
● NETWORK(FPS/Resolution):
- 30@3840x2160
- 60@1920x1080
- 72@1280x720

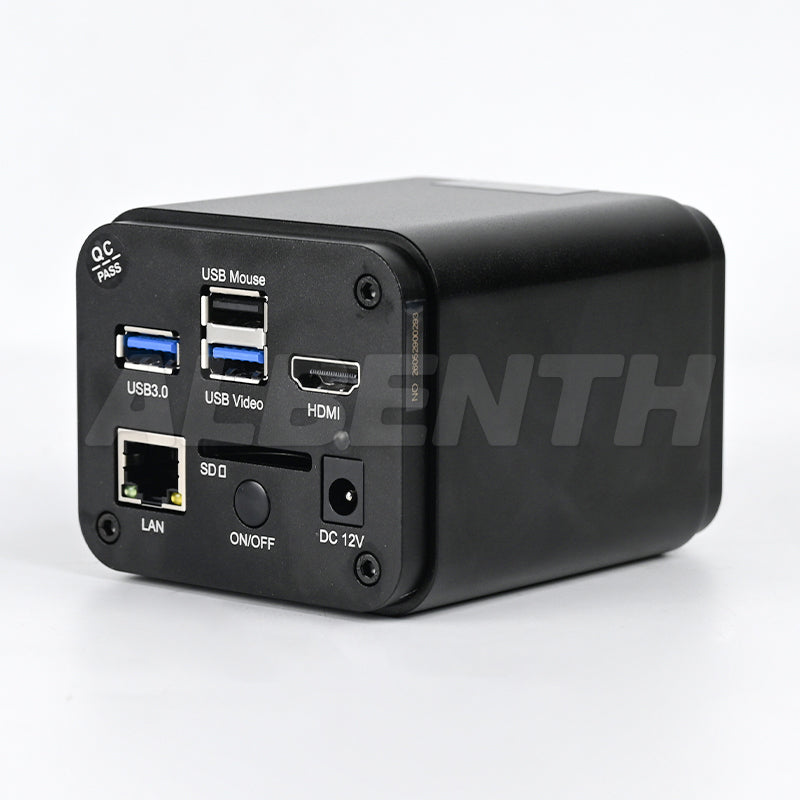

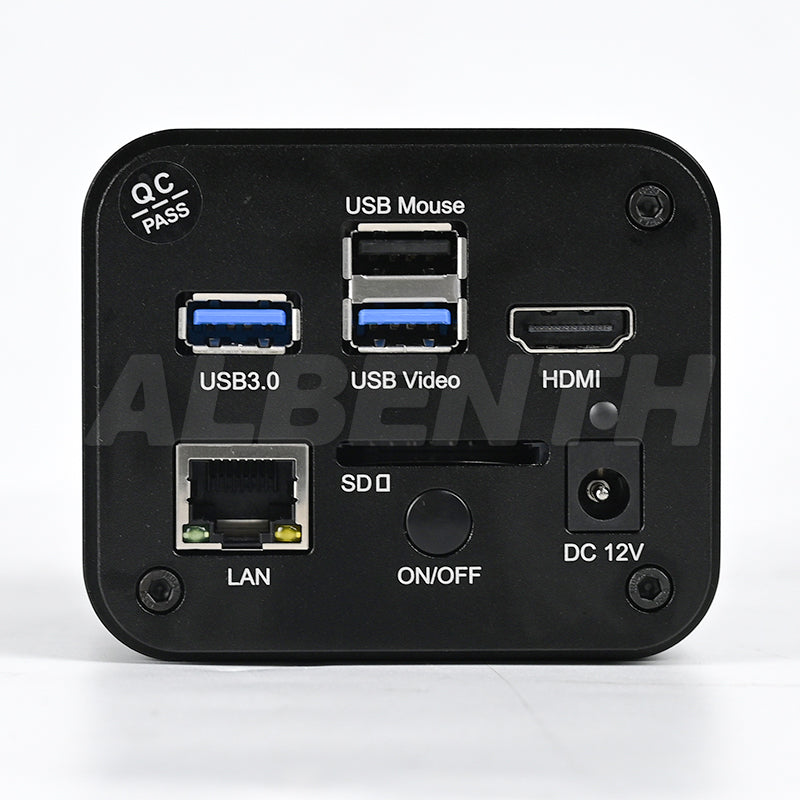

● Interface or Button: Function Description
● USB Mouse: Connect USB mouse for easy operation with embedded XView software (Flat shape without labelling)
● USB3.0: Connect USB flash drive to save pictures and videos
● Connect 5G WiFi module to transfer video wirelessly in real time
● Connect USB microphone for audio and video recording
● USB Video: Connect PC or other host device to realize video image transmission
● HDMI: Comply with HDMI2.0 standard. 4K/1080P format video output and supporting automatic switch between 4K and 1080P format according to the connected monitors
● LAN: LAN port to connect router and switch to transfer video
● SD: SD card slot, comply with SDIO3.0 standard and SD card could be inserted for video and images saving
● ON/OFF: Power switch
● LED: LED status indicator
● DC12V: Power adapter connection (12V/1A)
● Video Output Interface: Function Description
● HDMI Interface: Comply with HDMI2.0 standard; 60fps@4K or 60fps@1080P
● LAN Interface:
- Support real time resolution switching(4K/1080P/720P)
- H264 encoded video
- DHCP configuration or manual configuration
- Unicast/multicast configuration
● WiFi Interface: Connecting 5G WiFi adapter (USB3.0 slot) in AP/STA mode
● USB Video Interface:
- Connecting USB Video port of PC for video transfer
- H264/MJPEG format video
● Other Function: Function Description
● Video Saving:
- Video format：8M(3840*2160) H264/H265 encoded MP4 file
- Video saving frame rate: 75fps; 60fps in low delay mode
● Image Capture: 8M JPEG/TIFF image in SD card or USB flash drive
● Measurement Saving:
- Measurement information saved in different layer with image content
- Measurement information is saved together with image content in burn in mode
● ISP: Exposure(Automatic / Manual Exposure) / Gain， White Balance(Manual / Automatic / ROI Mode)， Sharpening, 3D Denoise， Saturation Adjustment, Contrast Adjustment, Brightness Adjustment, Gamma Adjustment, Color to Gray, 50HZ/60HZ Anti-flicker Function
● Image Operation: Zoom In/Zoom Out(Up to 10X), Mirror/Flip, Freeze, Cross Line, PIP , Browser(including Picture Browsing , Video Playback , Video Compare , Picture Compare , EDF , Image Processing), Measurement Function
● Embedded RTC(Optional): To support accurate time on board
● Restore Factory Settings: Restore Camera parameters to its factory status
● Multiple Language Support: English / Simplified Chinese / Traditional Chinese / Korean / Thailand / French / German / Spanish / Japanese / Italian / Dutch / Portuguese

Software Environment under Network/USB Video Output
● White Balance: Auto White Balance
● Color Technique: Ultra-Fine Color Engine
● Capture/Control SDK: Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc)
● Recording System: Still Picture or Movie
● Operating System:
- Microsoft® Windows® XP / Vista / 7 / 8 / 8.1 / 10 / 11(32 & 64 bit)
- OSx(Mac OS X)
- Linux
● PC Requirements:
- CPU: Equal to Intel Core2 2.8GHz or Higher
- Memory: 4GB or More
- Ethernet Port: RJ45 Ethernet Port
- Display:19" or Larger
- CD-ROM

Operating Environment
● Operating Temperature (in Centidegree): -10°C~ 50°C
● Storage Temperature (in Centidegree ): -20°C~ 60°C
● Operating Humidity: 30~80%RH
● Storage Humidity: 10~60%RH
● Power Supply: DC 12V/1A Adapter

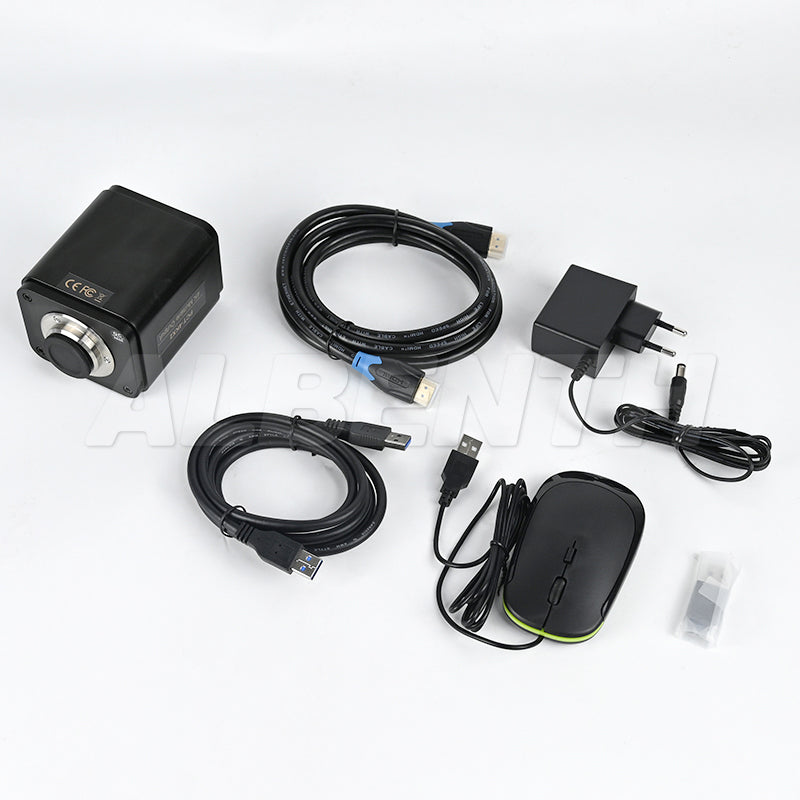

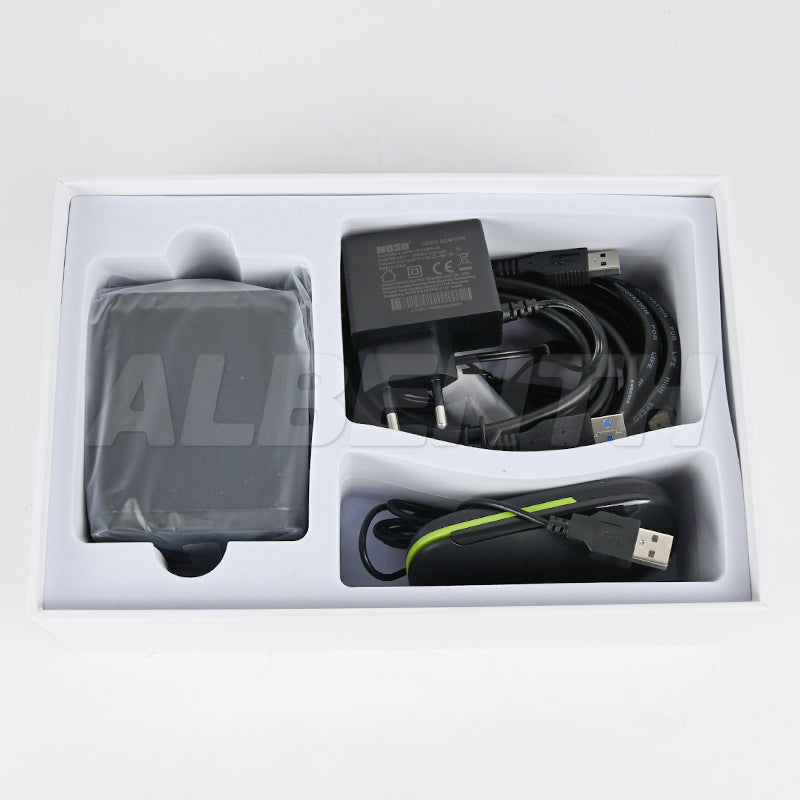

Standard Packing List
1* RT50H-4KX2 Camera
1* Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A
1* USB Mouse
1* HDMI Cable
1* USB3.0 A male to A male gold-plated connectors cable /2.0m
1* Digital software
