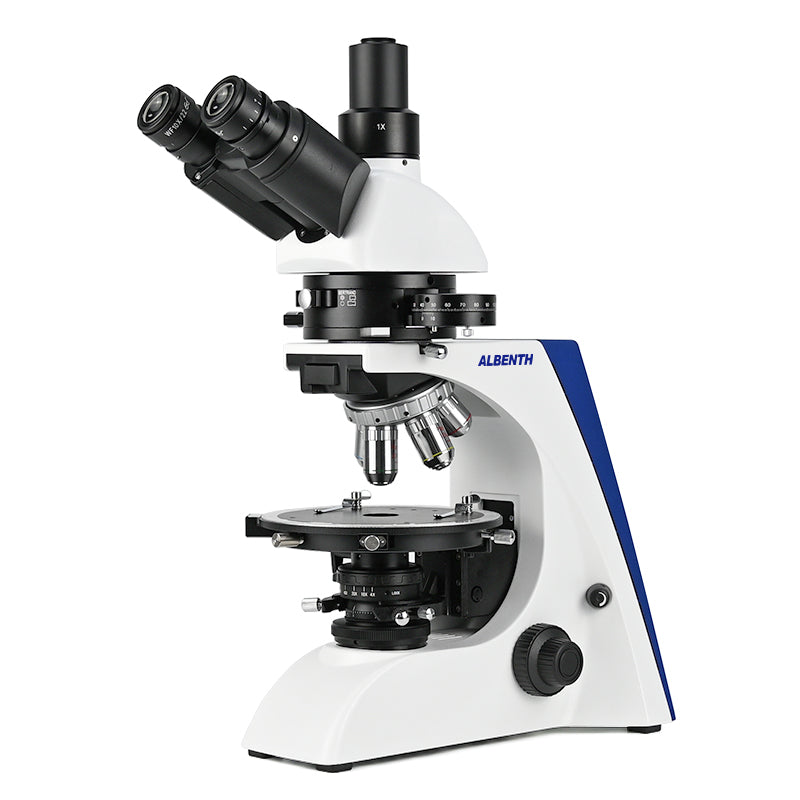

Albenth 40X-400X Trinocular Polarizing Microscope With Halogen Transmitting Illumination

Specifications:
● Seidentopf Trinocular Head: Inclined 30°, Rotatable 360°, Interpupillary Distance: 48mm-76mm, Light distribution(both) 100: 0 (100% for eyepiece) 80:20 (80% for trinocular head and 20% for eyepiece)
● Eyepiece:
   - WF10X/22mm (adjustable)
   - WF10X/22mm (adjustable,  reticle 0.1mm)
● Non-stress Infinity Plan Objective:
   - PLAN 4X/0.11 W.D.= 12.1mm
   - PLAN 10X/0.25 W.D.= 4.64mm
   - PLAN 20X/0.40(S) W.D.=2.41mm
   - PLAN 40X/0.66(S) W.D.=0.65mm
● Nosepiece: Quintuple (center adjustable)
● POL Media:
   - Analyzer rotatable 360°, module type, can be locked
   - Bertrand lens, Built-In, focus adjustable
● Slip:
   - λslip(First Class Red)
   - λ/4 slip
   - Quartz wedge(Ⅰ～ Ⅳ)
● Revolving Round Stage: Rotatable 360°, center adjustable, can be locked.division 1°, vernier division 6'. Diameter Φ174mm
● Swing-out Condenser: N.A.0.9/0.13, polarizing unit ( with scale, rotatable 360°, can be locked)
● Focusing Unit: Coaxial Coarse and Fine Focusing, coarse stroke 25mm, Fine stroke per rotation: 0.2mm, fine division 2 μm
● Transmitting Illumination: 6V/30W Halogen lamp, Input voltage:100V-240V 50/60Hz

Standard Packing List:
1* Microscope head & body
1* Eyepiece WF10X/22mm (adjustable)
1* Eyepiece WF10X/22mm (adjustable， reticle 0.1mm)
1* Non-stress Infinity Plan Objective 4X, 10X, 20X, 40X
1* Analyzer rotatable 360°
1* Bertrand lens
1* λslip(First Class Red)
1* λ/4 slip
1* Quartz wedge(Ⅰ～ Ⅳ)
1* C-mount Camera adapter 1X
