10X-40X Trinocular Jewelry Gemological Microscope With 5.1MP CMOS Camera Microscope

SKU: RXT716-VG2-5.1MP-EU
Availability: In Stock
Regular price
$531.55
Regular price
$594.17
Sale price
$531.55
Plug: EU
Hurry, only 50 item(s) left in stock!
Quote Request

Key Features
● 10X-40X continuous zoom stereo magnification power
● High quality widefield optics offers sharp clear erect images
● Incident brightfield and transmitted darkfield illumination
● Gooseneck fluorescent rectangular side lighting box
● Trinocular port for adding photo or video capability

Specifications
● Sharp stereo erect image over a wide field of view
● 45° inclined and 360° rotational Trinocular head with locked-in eyepiece.
● The left ocular-tube with diopter adjustment ±5dp, The interpupillary distance is between 55-75mm
● Eyepiece SWF10X
● Objective 1X-4X
● Working Distance: 91mm
● Incident light: Halogen Lamp 12V10W & Fluorescent 10W
● Transmitted light: Halogen Lamp 12V 10W
● Jewel tweezer
● Darkfiled working stage

8MP USB CMOS Camera
● Sensor & Size(mm): 5.1M/AR0521(C) 1/2.5“ (5.70x4.28)
● Pixel(μm): 2.2x2.2
● G Sensitivity Dark Signal:
- 18.8ke-/lux
- 73dB
- 40dB
● FPS/Resolution:
- 7.0@2592x1944
- 27.7@1296x972
- 100.5@648x486
● Binning:
1x1
2x2
4x4
● Exposure: 0.2ms~2000ms
● Spectral Range: 380-650nm (with IR-filter), for Monochromatic Camera, AR Is Used
● White Balance: ROI White Balance/ Manual Temp-Tint Adjustment
● Color Rendering Technique: Ultra Fine Color Engine
● Capture/Control SDK: Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc);
● Recording System: Still Picture and Movie
● Cooling System*: Natural
● Operating Temperature: -10 °C~ 50 °C
● Storage Temperature: -20 °C~ 60 °C
● Operating Humidity: 30~80%RH
● Storage Humidity: 10~60%RH
● Power Supply  : DC 5V over PC USB Port
● Operating System: Support Microsoft Windows XP / Vista / 7 /8 /10(32 & 64 bit) OS X (Mac OS X), Linux
● PC Requirements:
- CPU: Equal to Intel Core2 2.8GHz or Higher
- Memory: 2GB or More
- USB port: USB2.0 High-speed Port
- Display: 17" or Larger
- CD-ROM

Paking list:
- 1x Set of Microscope
- 1x Pair of SWF10X Eyepiece
- 1x Dust cover

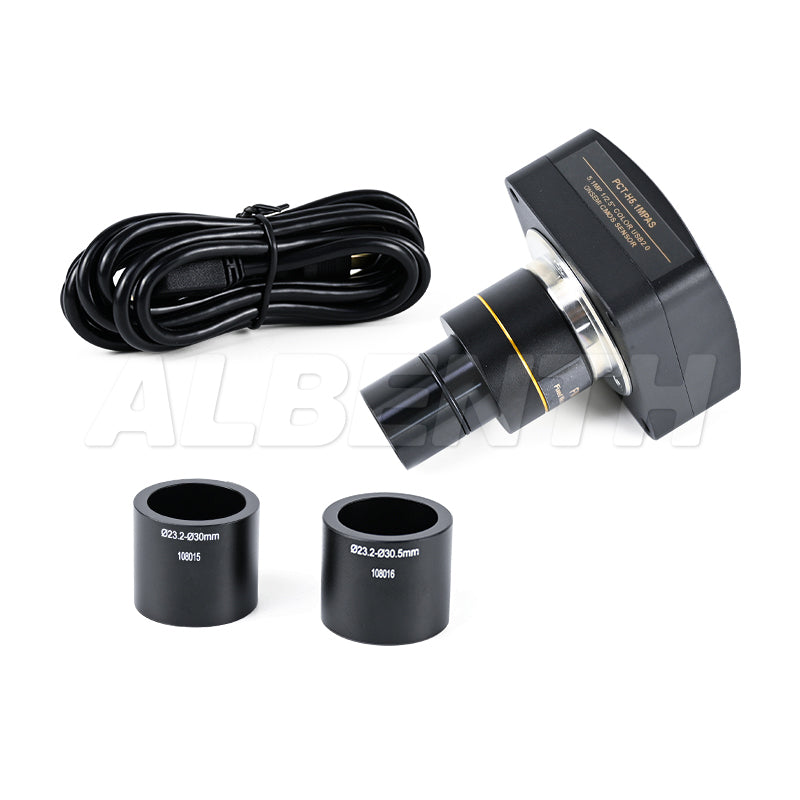

- 1x 8MP CMOS camera
- 1x USB2.0 cable /2.0m
- 1x CD (Driver & utilities software, Ø12cm)
- 1x 0.5X Fixed C-Mount Camera Adapter (For Dia.23.2mm eyepiece tube)
- 1x Adaptor rings for 30mm eyepiece tube (Dia.23.2mm to 30.0mm Ring)
- 1x Adaptor rings for 30.5mm eyepiece tube (Dia.23.2mm to 30.5mm Ring)
