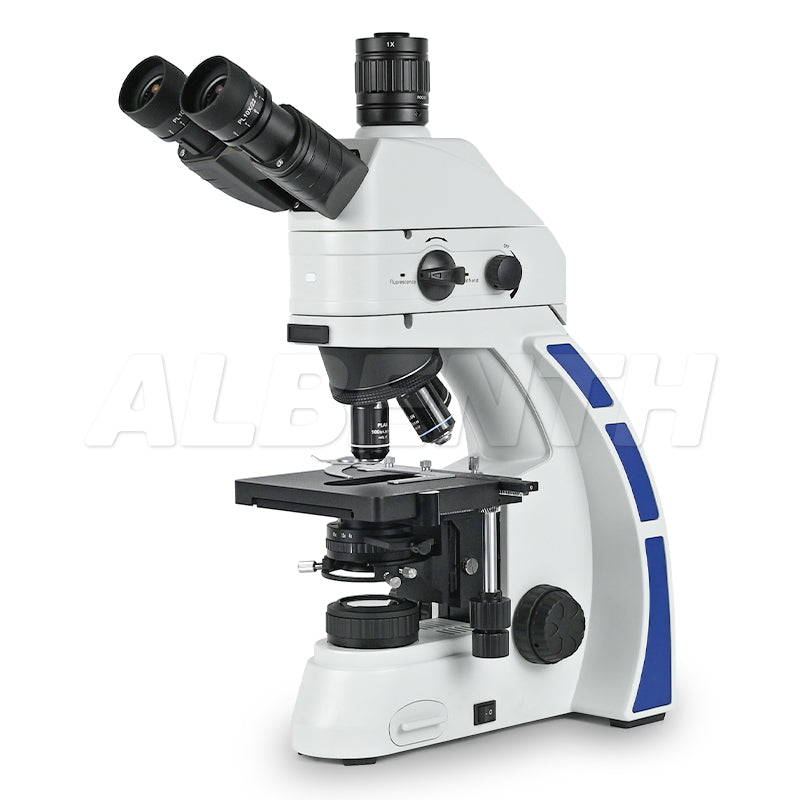

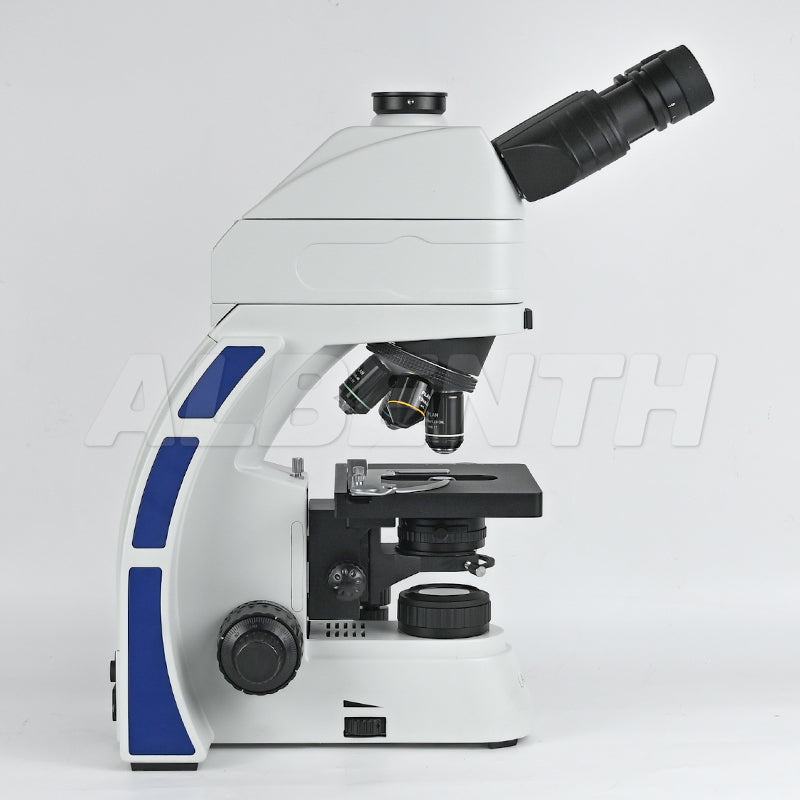

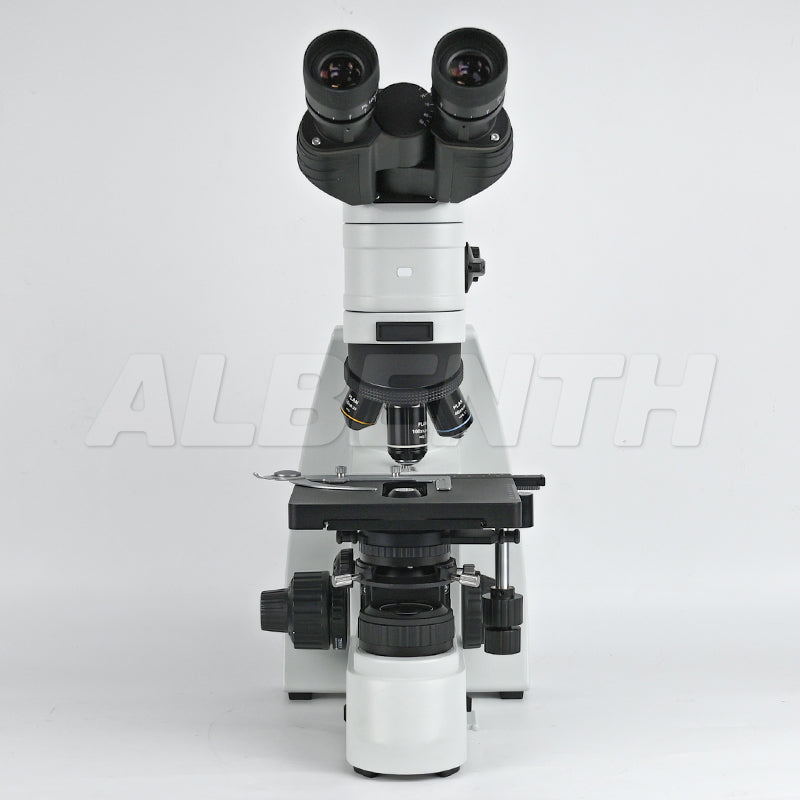

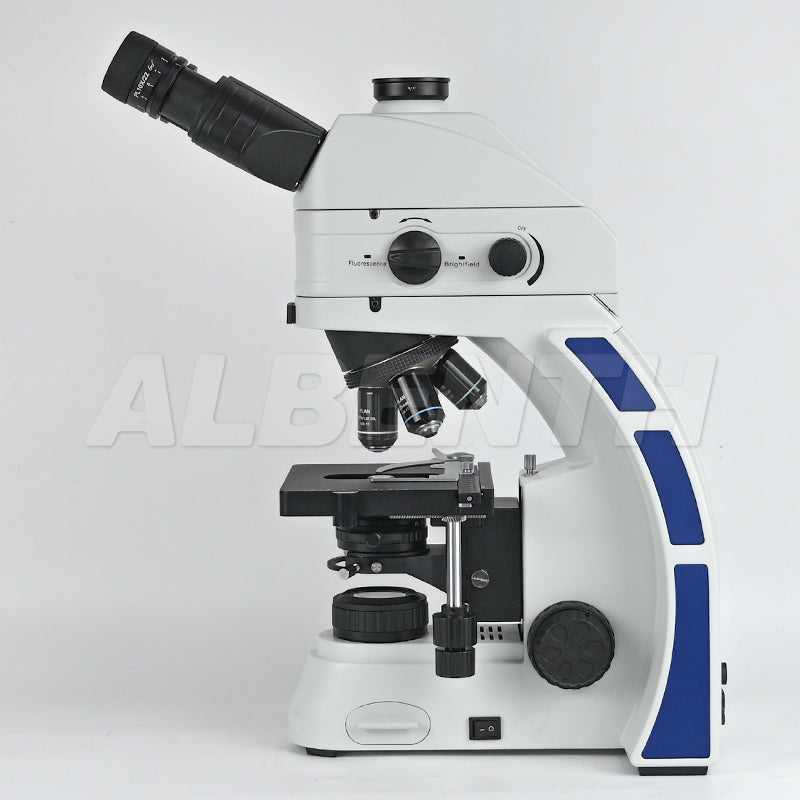

100X-1000X Fluorescence Microscope With LED Fluorescence Module Koehler Condenser

KHU-X30FLET LED fluorescent microscopes are high quality biological microscopes, which are specially designed for biological and medical research and teaching experiments for colleges, universities, laboratories and related institutes. With infinity color correction optical system and excellent Koehler illumination system, KHU-X30FLET can get uniform illumination, clear and bright images at any magnification. These microscopes can be used for teaching experiments, pathological examinations and clinical diagnosis. With outstanding functions, excellent cost performance, easy and comfortable operation, KHU-X30FLET microscopes present over expected and splendid micro images.

Specification

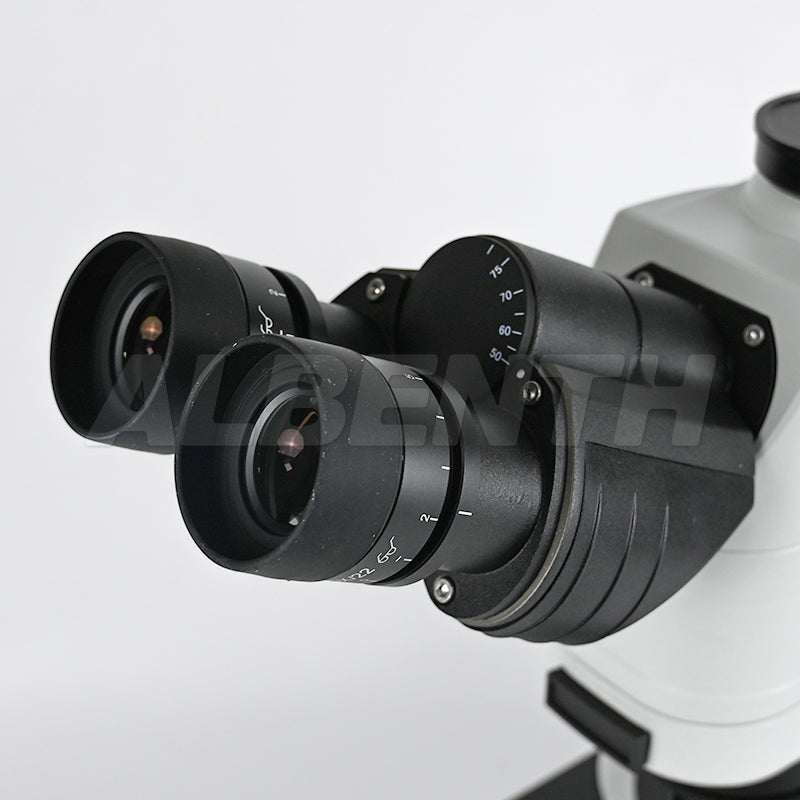

● Viewing head: 30°gemel trinocular viewing head with 360° rotatable eyepiece tube, interpupillary adjustable distance: 50-75mm, fixed spectroscopical ratio R:T=50%: 50%

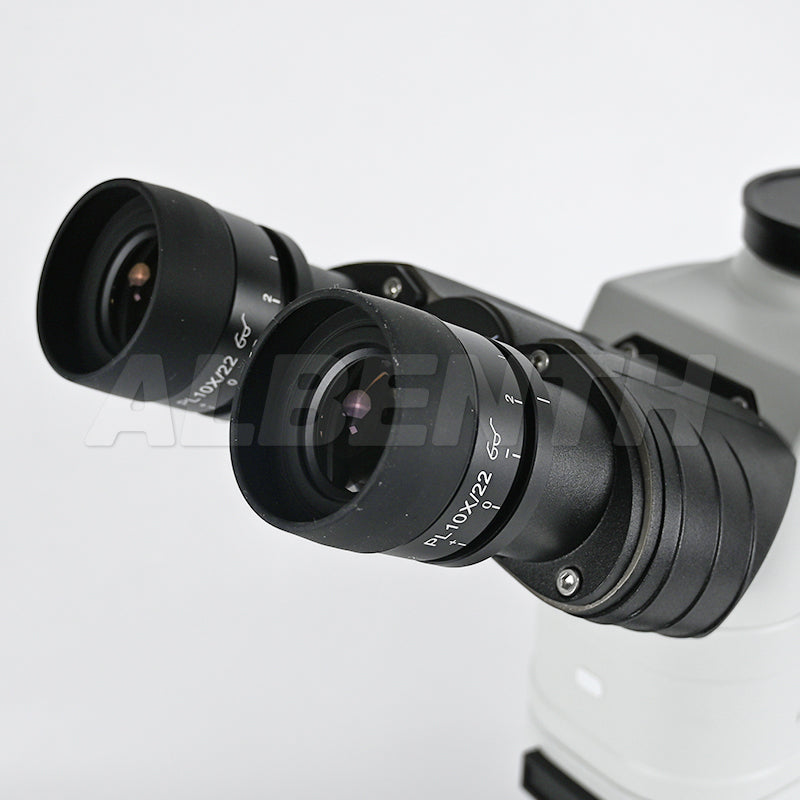

● Eyepiece: PL10X/22mm, adjustable diopter ±5

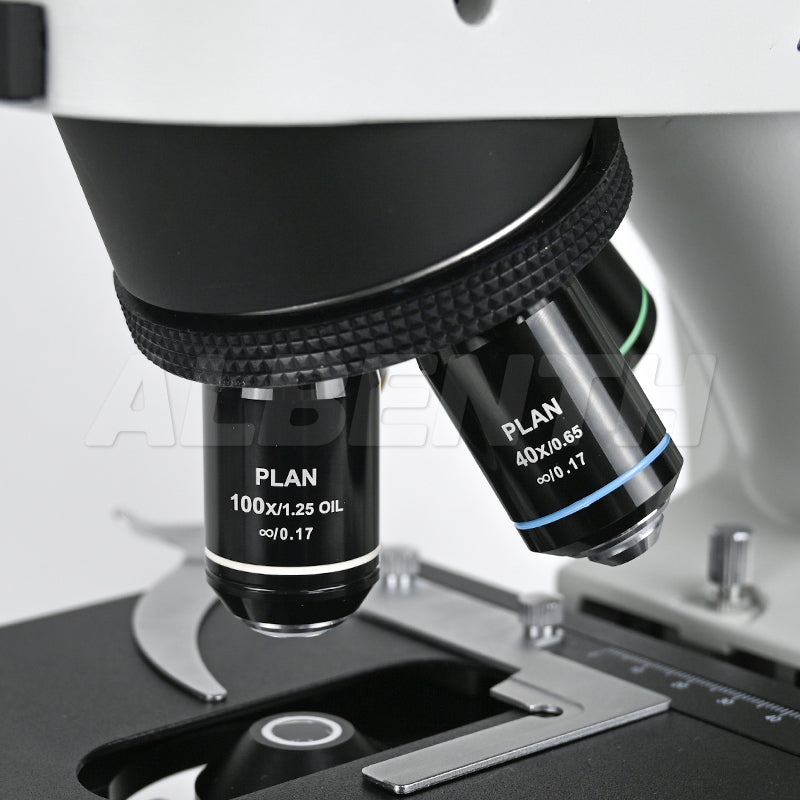

● Infinity plan achromatic objective:
- 10X/0.25, WD=10.8mm
- 20X/0.40, WD=1.50mm
- 40X/0.65, WD=0.8mm
- 100X/1.25, WD=0.21mm
● Nosepiece: Inwardly inclined, backward quadruple nosepiece

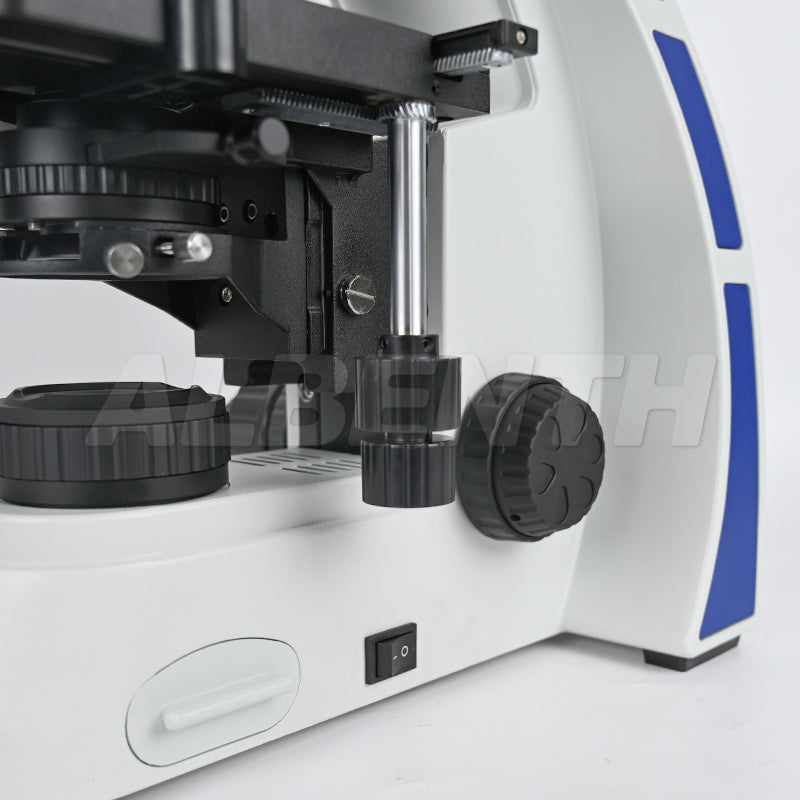

● Focus: Coaxial focus system with upper limited and tension adjustment, coarse range: 30mm, fine precision: 0.002mm, focus height adjustable

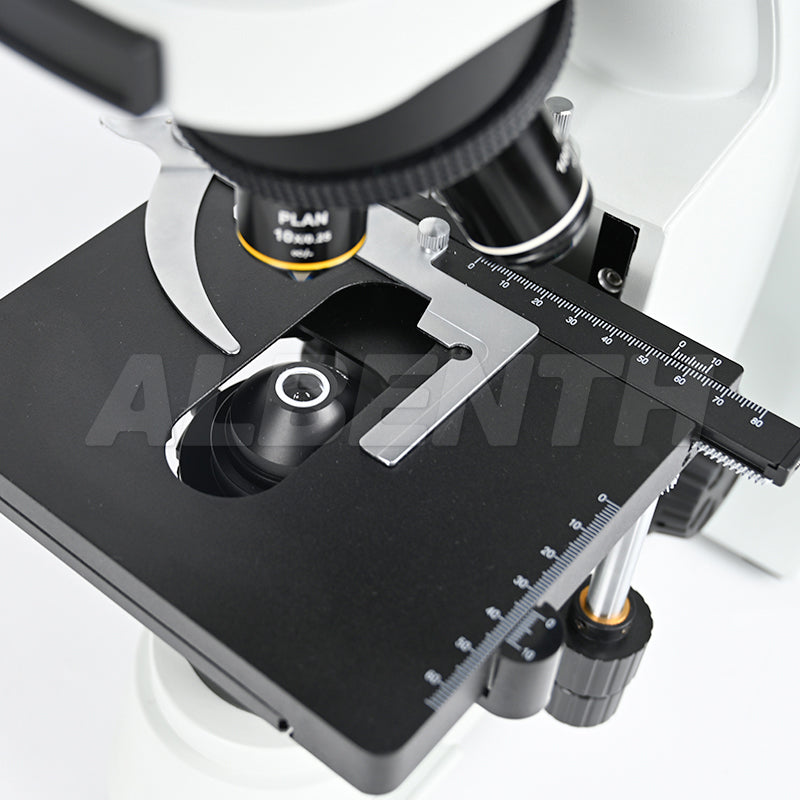

● Stage: 150X140mm Coaxial mechanical stage, travel range 76x50mm, precision: 0.1mm

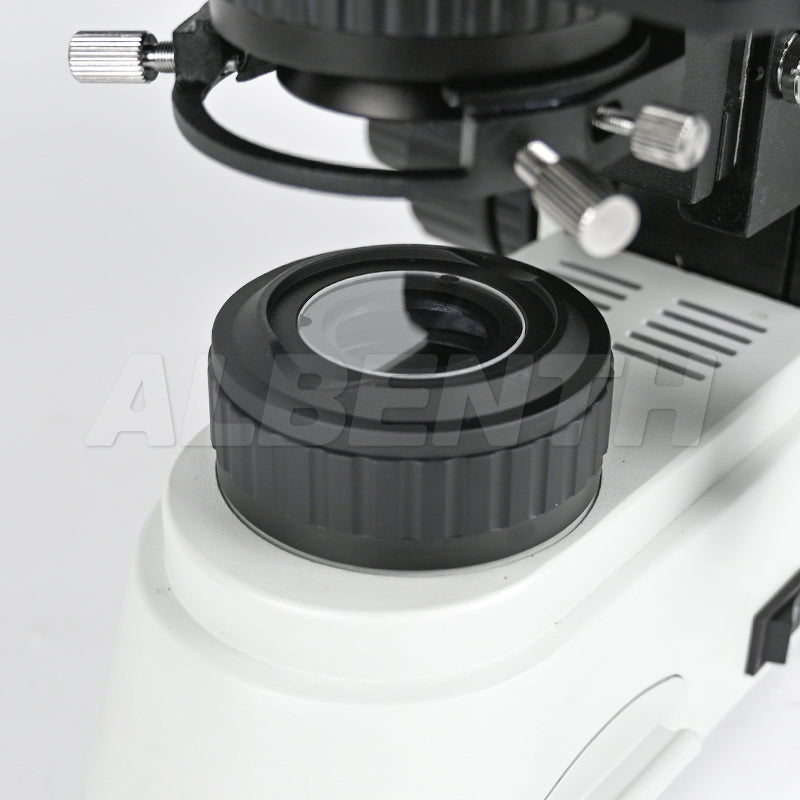

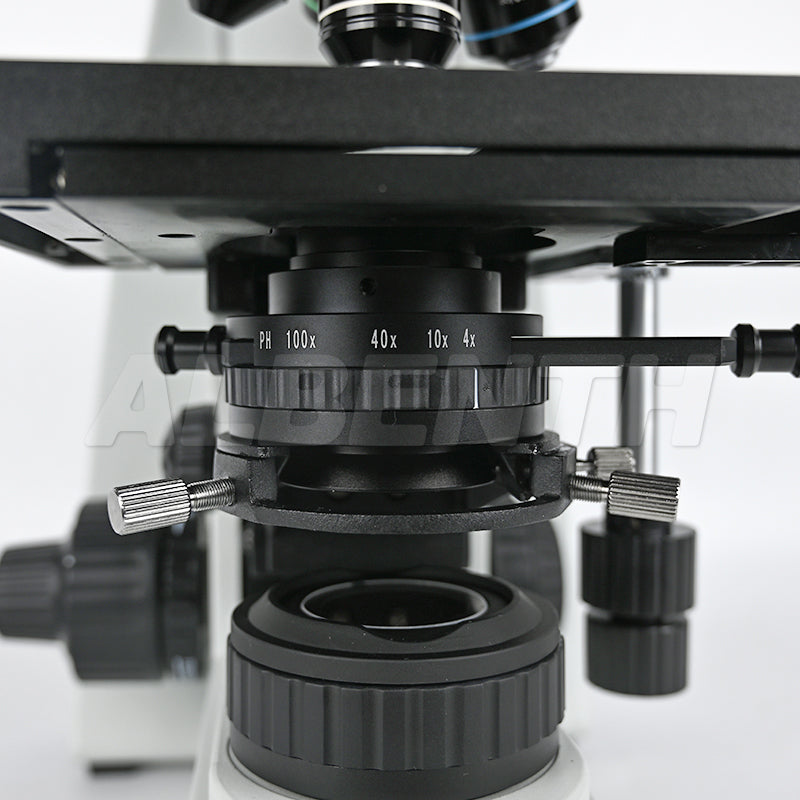

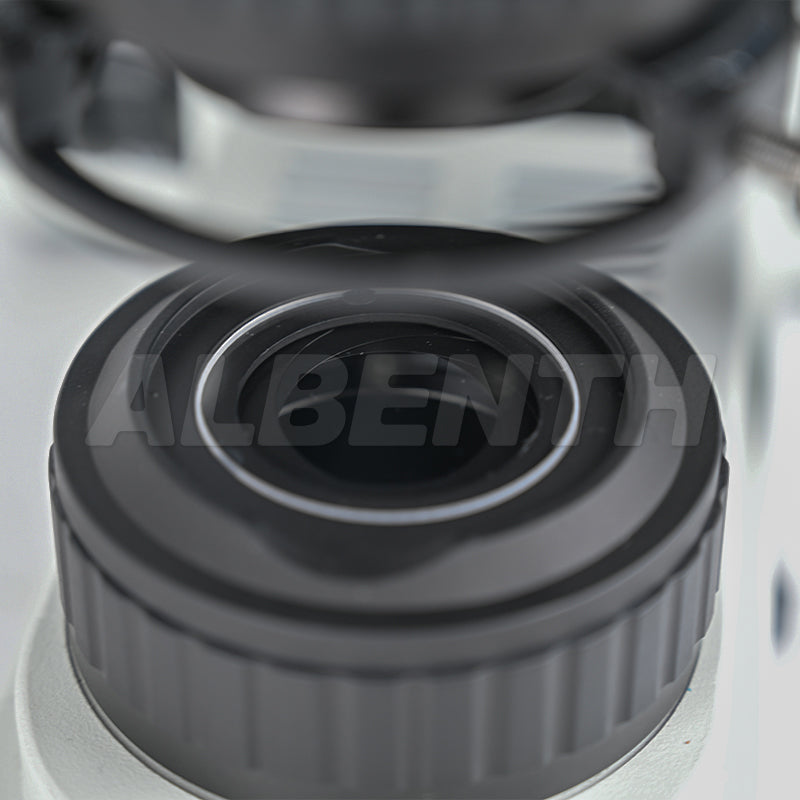

● Condenser: Koehler N.A.1.25 condenser (with plug-in phase contrast, dark field accessory interface), dial-type iris diaphragm, dovetail slot, condenser center adjustable, preset center, gear rack lift

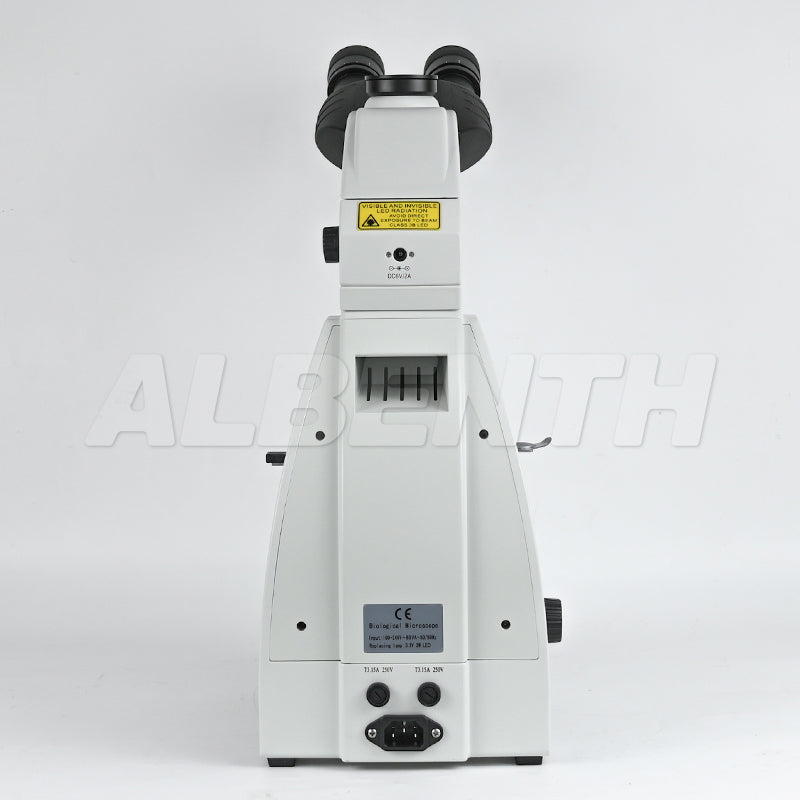

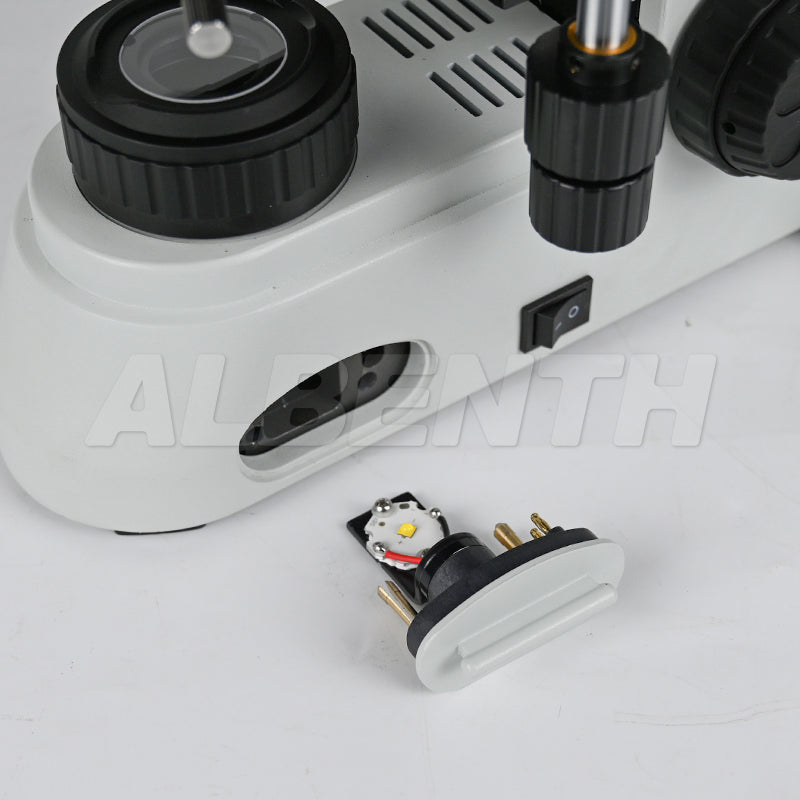

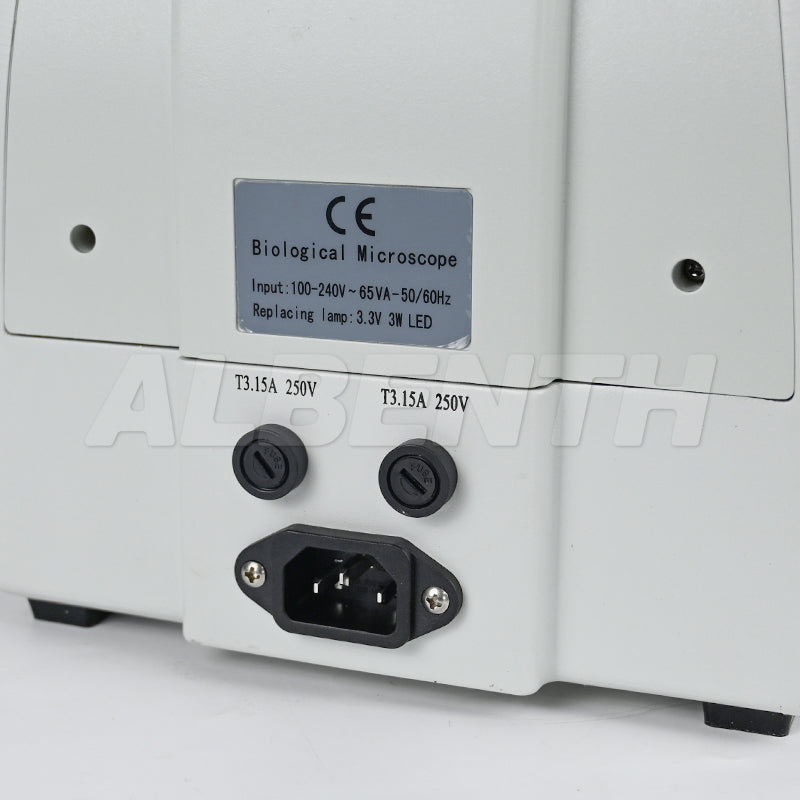

● Illuminator: Main supply 100V-240V, 3W LED lamp with intensity control, fixed center
● Fluorescent Accessories: LED fluorescent block panel

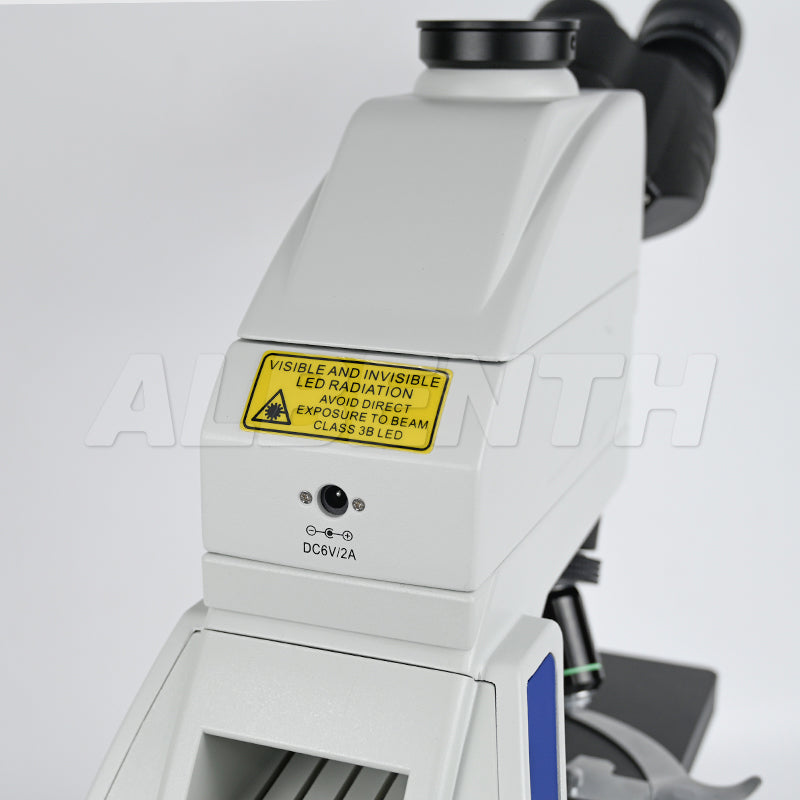

● Fluorescence  Module:
- B1 band-pass LED fluorescence intermediate module
- EX: 480/30, Φ25mm;
- DM: 505, 25.7X36X1mm;

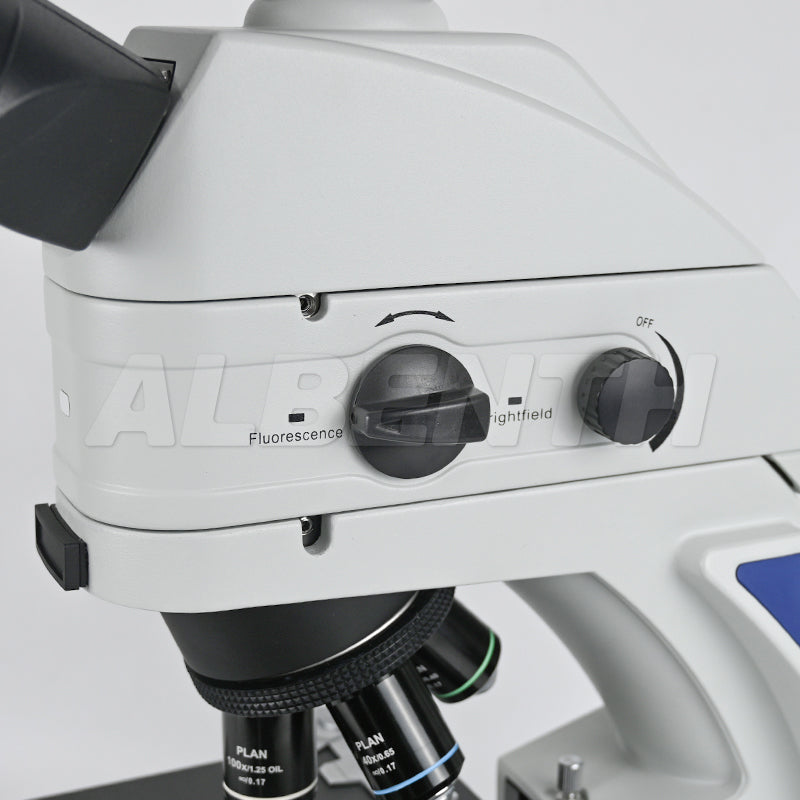

- EM: 535/40, Φ25mm), with light source brightness adjustment knob, bright field fluorescence switching knob, center wavelength 470nm
● Camera adapter: 1X C-type camera adapter, adjustable
