Albenth Auto-focus 8MP 30fps HDMI USB 1/1.8" CMOS Sensor Microscope Camera with Photo-capture

Product Information
● Sensor Size(mm): Sony IMX334(C) 1/1.8"(7.68x4.32)
● Pixel(μm): 2.0x2.0
● G Sensitivity Dark Signal:
- 505mv with 1/30s
- 0.1mv with 1/30s
● FPS/Resolution:
- 30@3840*2160(HDMI)
- 30@3840*2160(WLAN)
- 30@3840*2160(USB)
● Binning: 1x1
● Exposure(ms): 0.04~1000

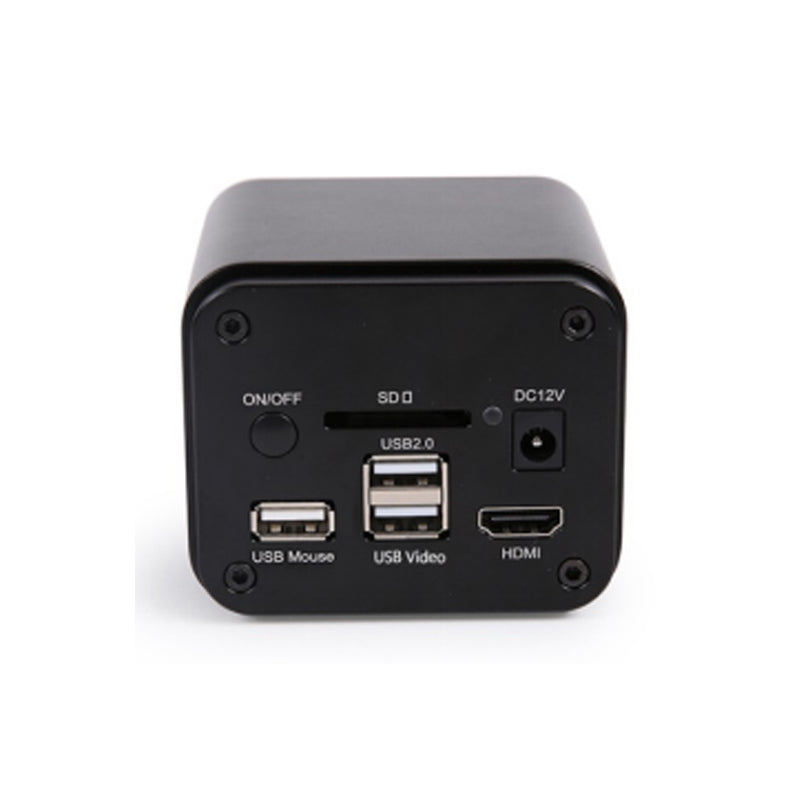

Interface Button Functions
● USB Mouse: Connect USB mouse for easy operation with embedded software
● USB2.0:
- Connect USB flash drive to save pictures and videos
- Connect 5G WLAN module to transfer video wirelessly in real time
● USB Video: Connect PC or other host device to realize video image transmission
● HDMI: Comply with HDMI1.4 standard. 4K/1080P format video output and supporting automatic switch between 4K and 1080P format according to the connected monitors
● ON/OFF: Power switch
● SD: Comply with SDIO3.0 standard and the SD card could be inserted for video and images saving
● LED: LED status indicator
● DC12V: Power adapter connection (12V/1A)

Video Output Interface Function Description
● HDMI Interface:
- Comply with HDMI1.4 standard
- 30fps@4K or 30fps@1080P
● WLAN Interface: Connecting 5G WLAN adapter (USB2.0 slot) in AP/STA mode
● USB Video Interface: Connecting USB Video port of PC for video transfer in MJPEG format

Other Function Description
● Video Saving:
- Video format: 8M(3840*2160) H264/H265 encoded MP4 file
- Video saving frame rate: 30fps in SD card or USB flash drive
● Image Capture: 8M (3840*2160) JPEG/TIFF image in SD card or USB flash drive
● Measurement Saving:
- Measurement information saved in different layer with image content
- Measurement information is saved together with image content in burn in mode
● ISP: Exposure(Automatic / Manual Exposure) / Gain, White Balance(Manual / Automatic / ROI Mode), Sharpening, 3D Denoise, Saturation Adjustment, Contrast Adjustment, Brightness Adjustment, Gamma Adjustment, Color to Gray, 50HZ/60HZ Anti-flicker Function
● Video /Image Operation: Zoom In/Zoom Out(Up to 10X), Mirror/Flip, Color/Gray, Freeze, Cross Line, Overlay , Auto Focus, Compare(Comparison between real time video and images in SD card/ USB flash drive ), Embedded Files Browser, Video Playback, Measurement Function
● Embedded RTC(Optional): To support accurate time on board
● Restore Factory Settings: Restore camera parameters to its factory status
● Multiple Language Support: English / Simplified Chinese / Traditional Chinese / Korean / Thailand / French / German / Japanese / Italian / Russian

Software Environment Under WLAN/USB Video Output
● White Balance: Automatic/Manual/ROI
● Color Technique: Ultra-Fine Color Engine
● Capture/Control SDK: Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc)
● Recording System: Still Picture or Movie
● Operating System:
- Microsoft® Windows® XP / Vista / 7 / 8 / 8.1 /10(32 64 bit)
- OSx(Mac OS X)
- Linux
● PC Requirements:
- CPU: Equal to Intel Core2 2.8GHz or Higher
- Memory: 4GB or More
- Display:19” or Larger
- CD-ROM

Operating Environment
● Operating Temperature (in Centidegree): -10°~ 50°
● Storage Temperature (in Centidegree): -20°~ 60°
● Operating Humidity: 30~80%RH
● Storage Humidity: 10~60%RH

Packing List:
1* RT80F-4KPB Camera
1* Power Adapter
1* USB Mouse
1* HDMI Cable
1* USB2.0 cable/2.0m
