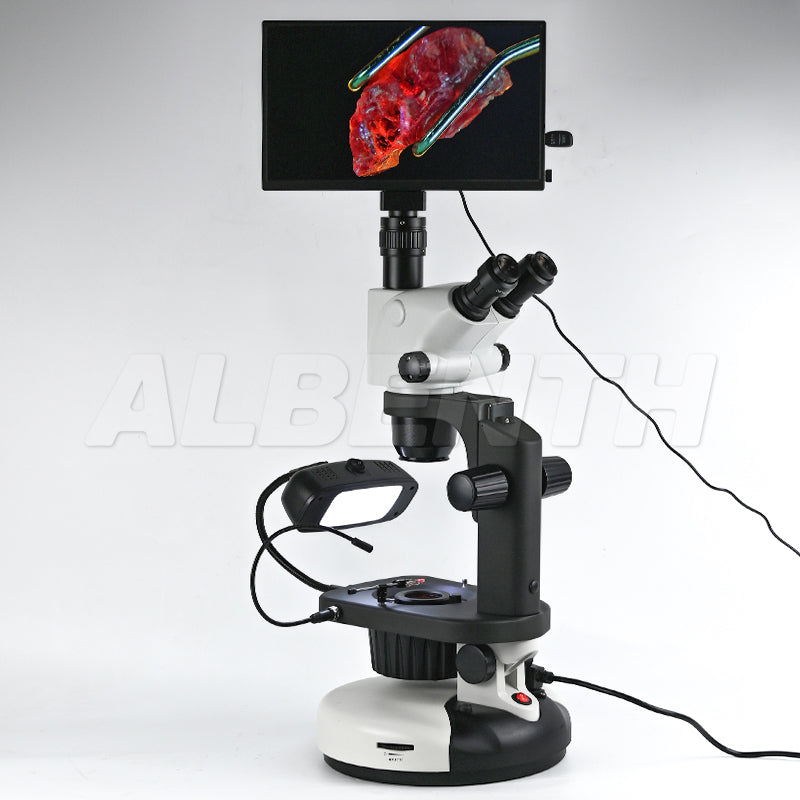

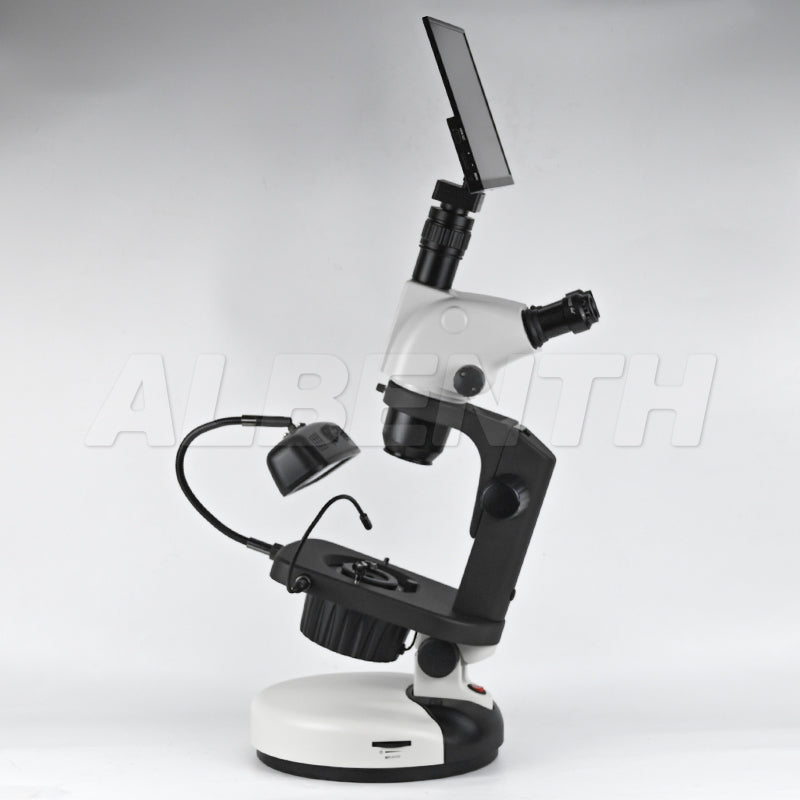

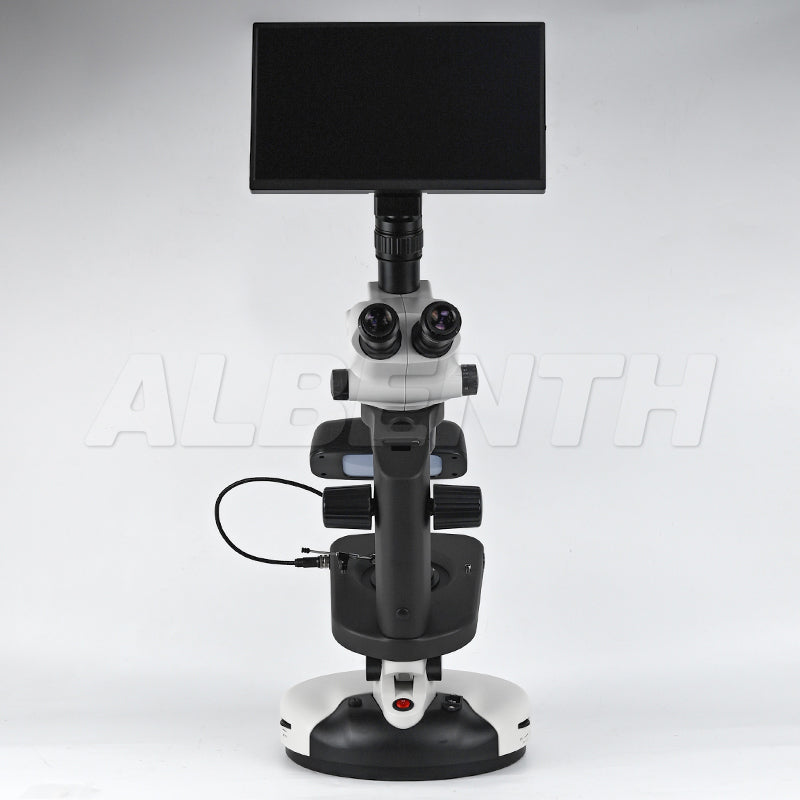

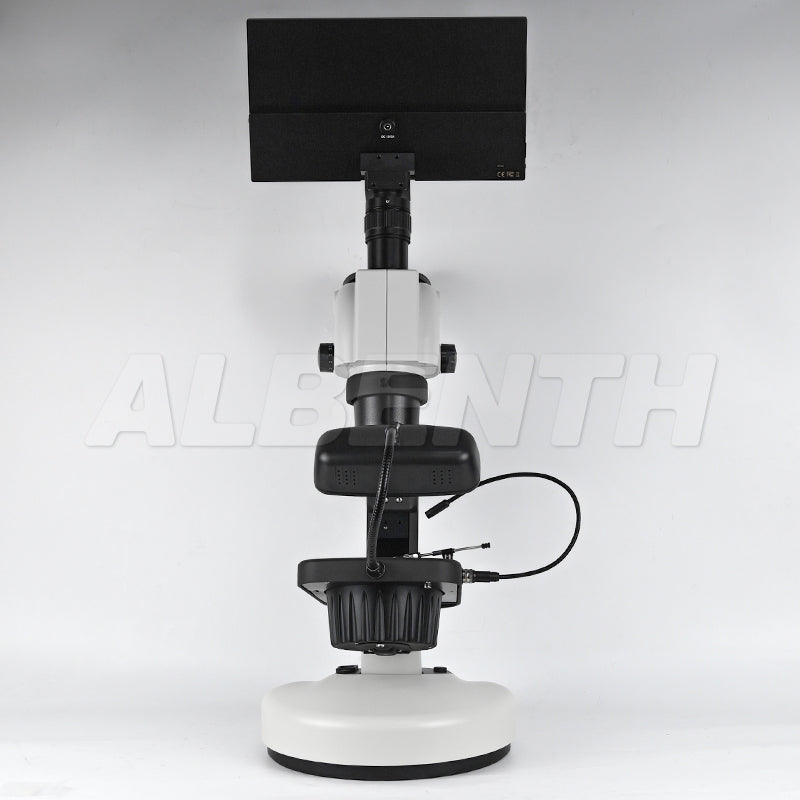

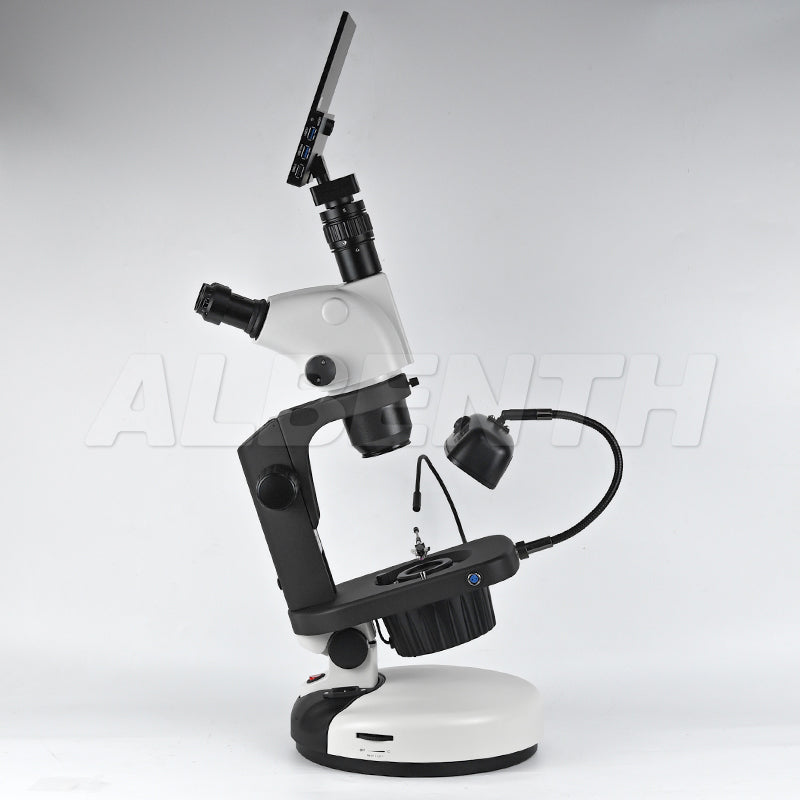

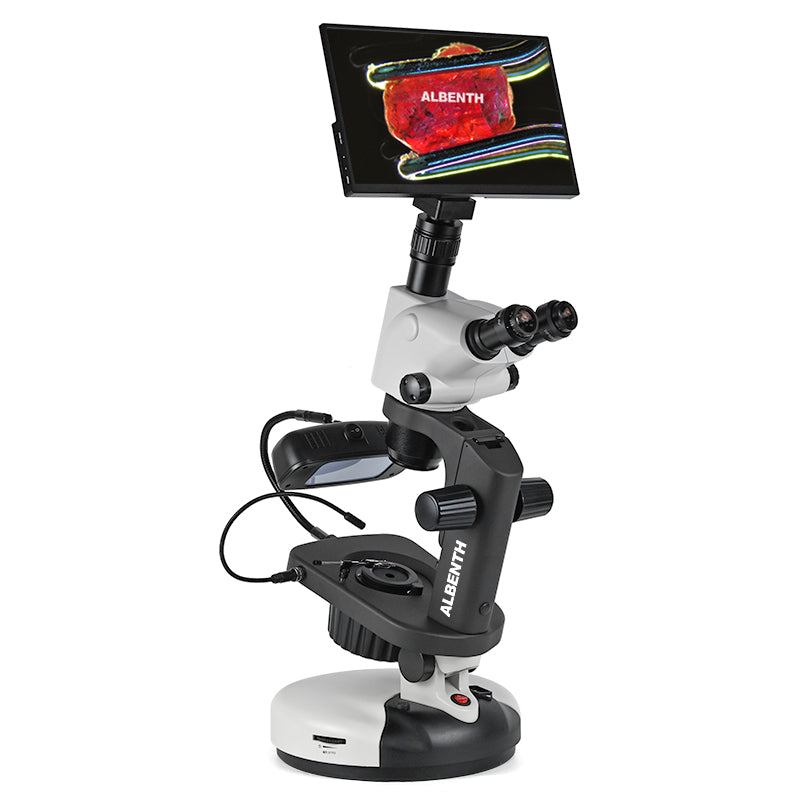

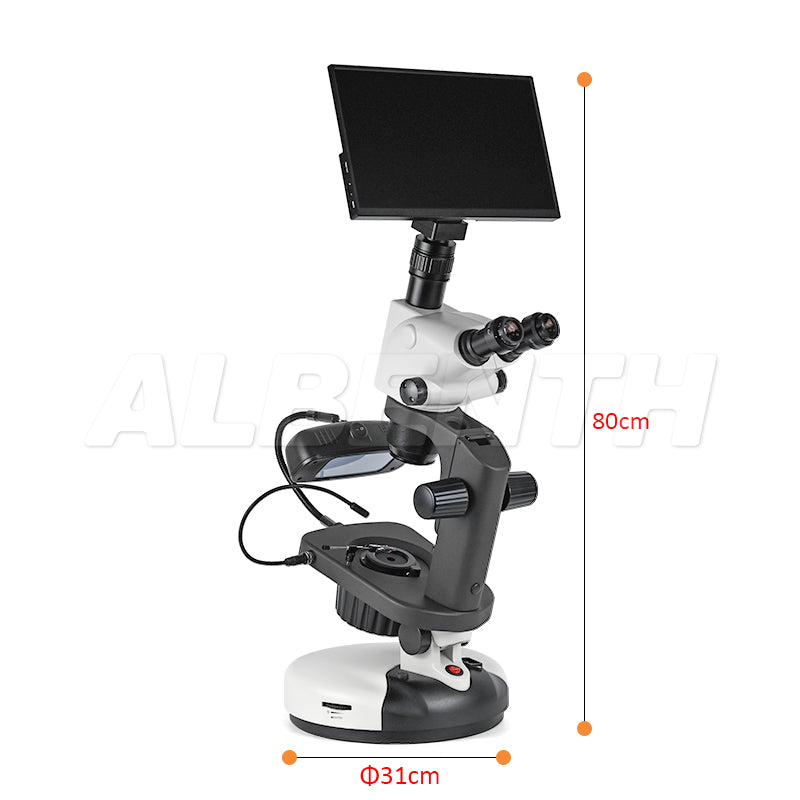

Albenth 6.5X-65X Trinocular Professional Jewelry Gemological Microscopes, With 4K 13.3'' LCD WiFi, HDMI, USB Microscope Camera

Experience unparalleled clarity and versatility with the RXT626-VG1-4KWF Microscope, integrating cutting-edge 4K imaging technology with professional-grade optics. This system is engineered for demanding applications in gemology, electronics, quality control, and research.

Key features:
- High-End Camera: Sony sensor, 4K60 output, advanced ISP controls.
- Versatile Connectivity: Multiple high-speed output options (HDMI, USB, WiFi, USB Drive).
- Powerful Software: Measurement, EDF, comparison tools, flexible saving.
- Quality Optics: Wide zoom range, good working distance.
- Specialized Design: Gem clamp, triple illumination, extensive ergonomic adjustments.
- Professional Use Case: Targets gemology, industrial inspection, QA.

RXT626-VG1-4KWF Microscope Specification

4K Camera:
● LCD screen size: 13.3inch (L*W306.7*184)
● Sensor & Size(mm): Sony IMX678(C), 1/1.8"(7.68x4.32)
● Pixel (μm): 2.0x2.0
● G Sensitivity/Dark Signal: 3541mv with 1/30s, 0.15mv with 1/30s
● Sensor Output, (FPS/Resolution): 60@3840*2160
● Binning: 1x1
● Exposure(ms): 0.019~1000
● Video Saving (FPS/Resolution): 60@fps3840*2160, 60@fps1920*1080
● Video format: 8M (3840*2160) H264/H265 encoded MP4 file
● HDMI 2.0 (FPS/Resolution): 60@3840*2160, 60@1920*1080
● USB 3.0 (FPS/Resolution): 30@3840*2160, 45@2688*1512, 60@1920*1080
● WiFi (FPS/Resolution): 30@3840*2160, 60@1920*1080, 60@1280*720
● Video & image output: HDMI, USB 3.0, WiFi, or USB flash drive
● Video Saving format：8M (3840*2160) H264/H265 encoded MP4 file
● Video saving frame rate: 60fps in Low Delay mode; 30fps in WDR mode
● Image Capture: 8M (3840*2160) JPEG/TIFF image in USB flash drive
● Measurement Saving:
   - Measurement information saved in different layers with image content
   - Measurement information is saved together with image content in burn-in mode
● ISP: Exposure(Automatic / Manual Exposure) / Gain, White Balance(Manual / Automatic / ROI Mode), Sharpening, 3D Denoise, Saturation Adjustment, Contrast Adjustment, Brightness Adjustment, Gamma Adjustment, Hue Adjustment, Color to Gray, 50HZ/60HZ Anti-flicker Function
● Software: Zoom In/Zoom Out (Up to 10X), Mirror/Flip, Freeze, Video EDF, Cross Line, Overlay, PIP, Browser (including Picture Browsing, Video Playback, Video Compare, Picture Compare, Picture EDF, Image Processing), Measurement Function

Microscope:
● Viewing head: Trinocular viewing head, Inclined 45°. Interpupillary distance adjustment 54-76mm, Diopter adjustment +/- 5.
● Eyepiece: WF10x/22mm focusable eyepieces, Eyeguards included
● Zoom objective: 0.65X-6.5X
● Zoom ratio: 10: 1
● Working distance: 110mm
● Head mounting size: 76mm in diameter
● C-Mount Adapter: 1X (Included)
● Dust cover: Yes (Included)
● Color: White or black
● Microscope body holder: φ76mm

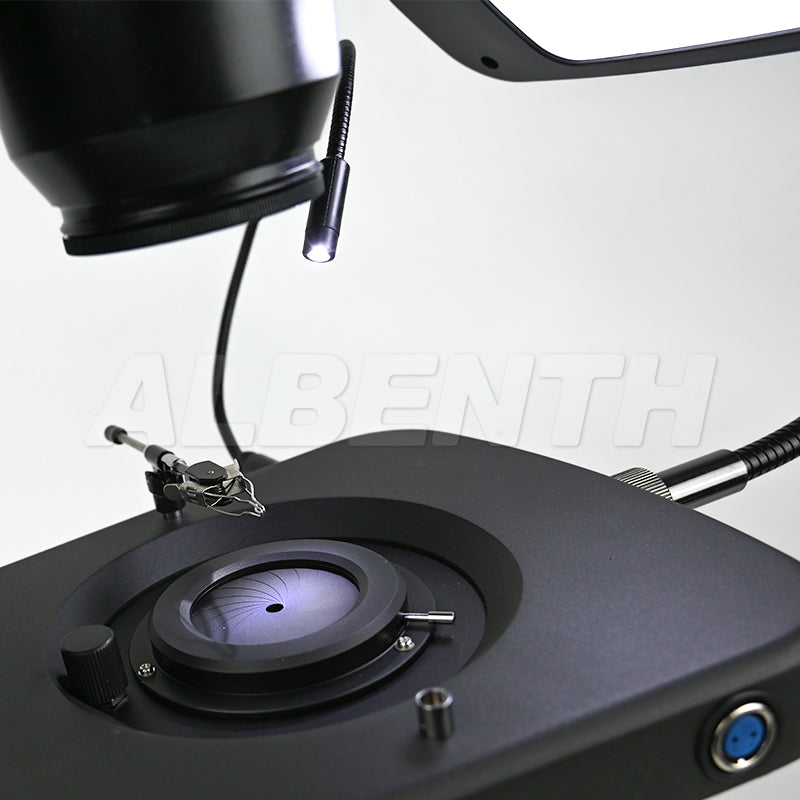

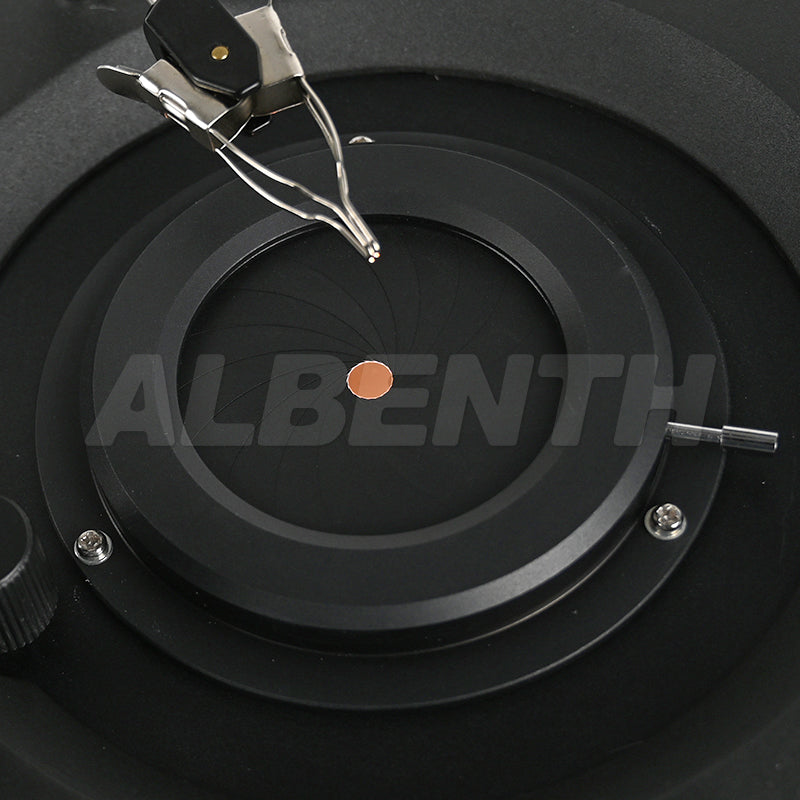

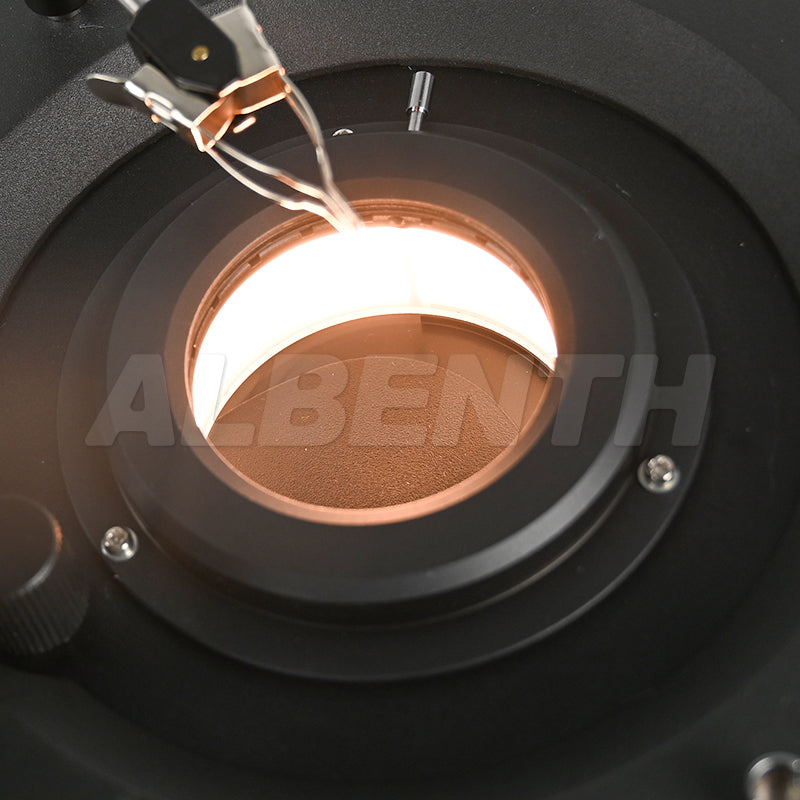

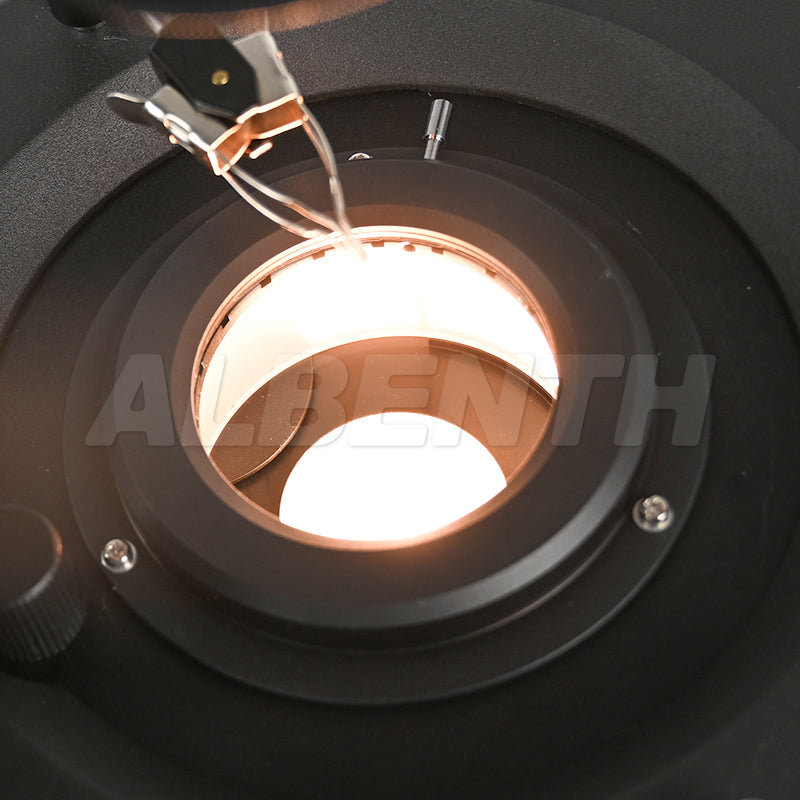

●Sliding baffle and iris diaphragm: 2mm-41mm
● 3pcs Illuminators:
   - Overhead 7W Fluorescent lamp
   - LED Point Light
   - 6V/20W Halogen illumination
● Focus travel: 115mm

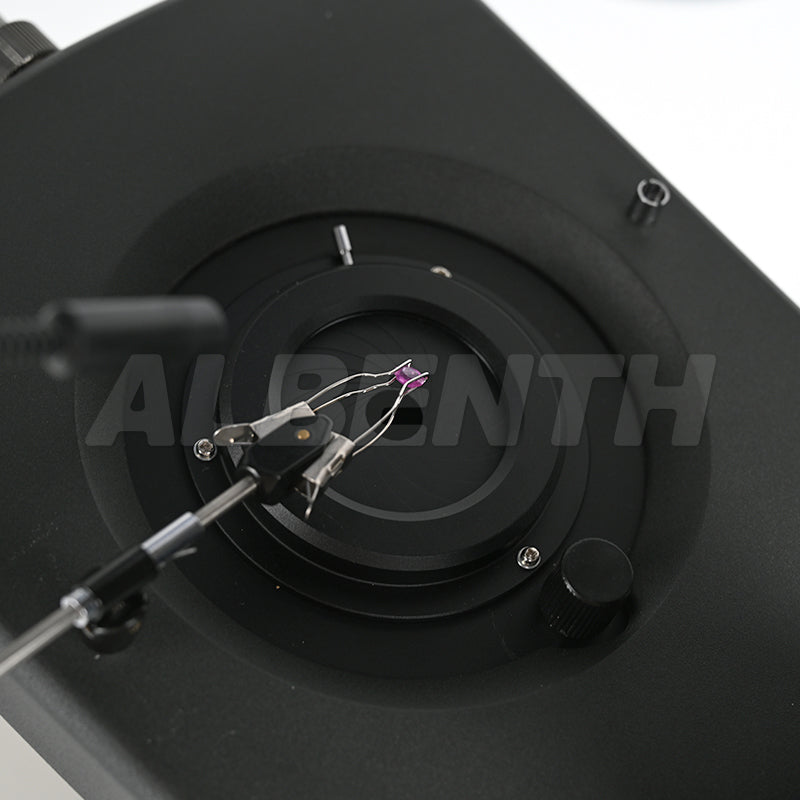

● Gem Clamp: Quality steel clamp to hold the gem for all direction observations of gems
● Stand angle tiltable adjustment: 0-38°
● Base rotatable: 0°-325°

Packing List:
1x 0.65x-6.5x Microscope Body
1x Pair 10x/22mm eyepieces
1x C-Mount Camera Adapter 1X
1x Gem Stand Built-in Transmitted Light
1x LED Point Light
1x 7W Fluorescent Lamp
1x Gem Tweezers
1x Power Cable
1x Dust Cover
1* 4K LCD Camera
1* USB Cable
1* USB Flash Drive
1* USB Mouse
1* Power Adapter
